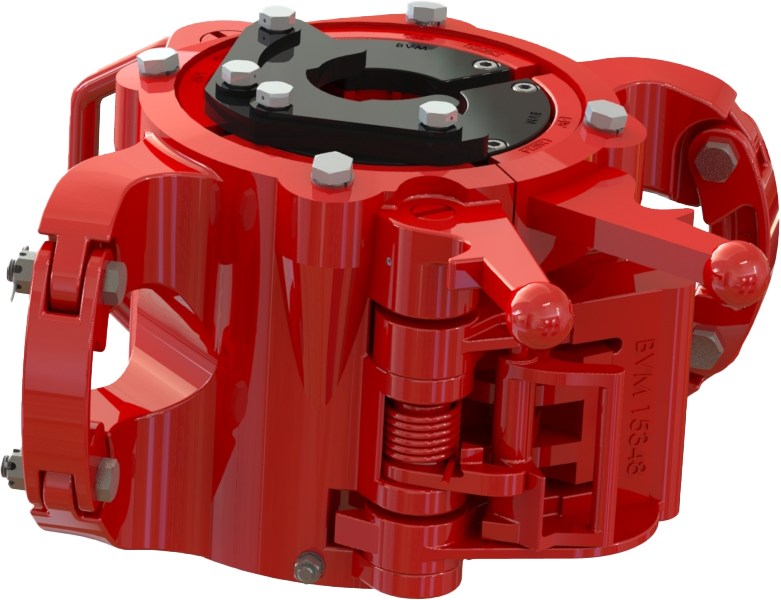

Slip Type Elevators "Y" Series

YC, MYC, HYC, YT, MYT

World Petroleum Supply stocks "Y" Series Manual Elevators from NOV, BVM Corp., F-E-T, and Keystone Energy Tools.

World Petroleum Supply stocks Manual Elevators.
Side Door Elevator "X" Series

Slip Type Elevator for Casing and Tubing needs

“Y” Series Tubing

Slip-type tubing elevators hold and hoist tubing for completion and production operations.

They are especially suitable for the hoisting of integral joint tubing.
The slip-type tubing elevators come in four types: the 20-ton “LYT”, 40-ton “MYT”, 75-ton “YT” and the 150-ton “HYT”. Tubular sizes are from 3/4” through 3 1/2”.

All slip backs and die slots on Keystone slips are precision machined to ensure proper grip and to prevent bottlenecking or slip cuts to the pipe. All Keystone slip type elevators are manufactured in the United States and built to meet or exceed API 8C standards.

Our slips and elevators come with a complete data book, including material and heat certification. This certification ensures your equipment is manufactured with steel from trusted vendors. The manufacturer's seal and API stamp indicate a seal of quality.

World Petroleum Supply, Inc. supply the "Y "series elevators from five of the top oilfield tool manufacturers in North America. These elevators are conventional slip type elevators for handling tubing and small casing. They feature a four-slip design which give an optimum contact on the pipe to prevent bottle necking and gauge damage. Contact World Petroleum Supply, Inc. for details.

When ordering please specify:

  • What size inserts to be dressed in the slip body
  • Extra insert sizes
  • Spare parts

World Petroleum Supply stocks a wide variety of Spare Parts including rings, hinge pins, latch pins, cotter pins, latch locks, and slip bolts.

LYT Slip Type Tubing Elevator

The LYT 20 Ton Slip Type Elevator is designed to handle small size tubing. The LYT size range is 3/4” through 2-1/16” and requires only one size slip to handle its full range. Rated capacity is 40 tons.

LYT Slip Type Tubing Elevator available from World Petroleum Supply, Inc. Houston serving the globe.

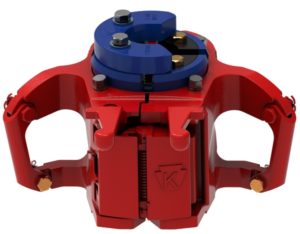

MYT Slip Type Tubing Elevator

The MYT 40 Ton Slip Type Elevator is a lightweight tubing elevator used for holding and hoisting oilfield tubing. The MYT size range is 1.315” through 2-7/8” and requires only one size slip to handle its full range. Rated capacity is 40 tons.

YT Slip Type Tubing Elevator available from World Petroleum Supply, Inc. Houston serving the globe.

YT Slip Type Tubing Elevator

A medium weight tubing elevator for tubing 1″ through 3 1/2″, the YT requires the use of two sizes of slips to handle its full range. Rated capacity is 75 tons.

HYT Slip Type Tubing Elevator available from World Petroleum Supply, Inc. Houston serving the globe.

HYT Slip Type Tubing Elevator

The LYT 20 Ton Slip Type Elevator is designed to handle small size tubing. The LYT size range is 3/4” through 2-1/16” and requires only one size slip to handle its full range. Rated capacity is 40 tons.

LYT Slip Type Tubing Elevator available from World Petroleum Supply, Inc. Houston serving the globe.

“Y” Series Casing • YC Casing Elevator

The YC elevator is an exceptionally versatile elevator that handles either external upset or API collartype casing simply by installing the proper size insert-type slips and slip-setting ring assembly. In addition, slips can be provided that enable the YC elevator to handle dual strings of tubing. To reduce the possibility of the elevator opening under load, a latch lock is provided in addition to the spring type-latch. The rugged, long-lasting slip inserts are easily changed when they become worn.

Size range and capacity: 3.1/2" (89 mm) through 7" (178 mm) casing. API load rating is 75 sTon (68 Tonne)

YC 75 Ton Casing Elevator available from World Petroleum Supply, Inc. Houston serving the globe.

MYC Casing Elevator

With its 125 sTon (114 Tonne) capacity the MYC elevator completes the range of Y type elevators for handling either external upset or API collar type casing or tubing. The MYC elevator has a range of 3.1/2" to 7", utilizing the same slips as the YC elevator. All slips provide a full 7" of insert contact to firmly grip your casing or tubing. The MYC operates with a latch and a latch lock combination for safety.

Size range and capacity: 3.1/2" to 7" (89-178mm) OD. API load rating is 125 sTon (114 Tonne).

HYC Casing Elevator

The HYC elevator is a powerful 200 sTon (181 Tonne) capacity elevator and can handle from 2.7/8" to 7.5/8" tubing or casing. The full range can be achieved with the use of 5 sets of slips for the complete range. All slips provide a full 10.1/2" (7.5/8" slip has a height of 8.625") of insert contact to firmly grip your casing or tubing. The HYC elevator as with all Type 'Y' series elevators operates with the latch lock combination for safety.

Size range and capacity: 2.7/8" through 7.5/8" (73-194 mm) OD. API load rating is 200 sTon (181 Tonne).

HYC 200 Ton Casing Elevator available from World Petroleum Supply, Inc. Houston serving the globe.
